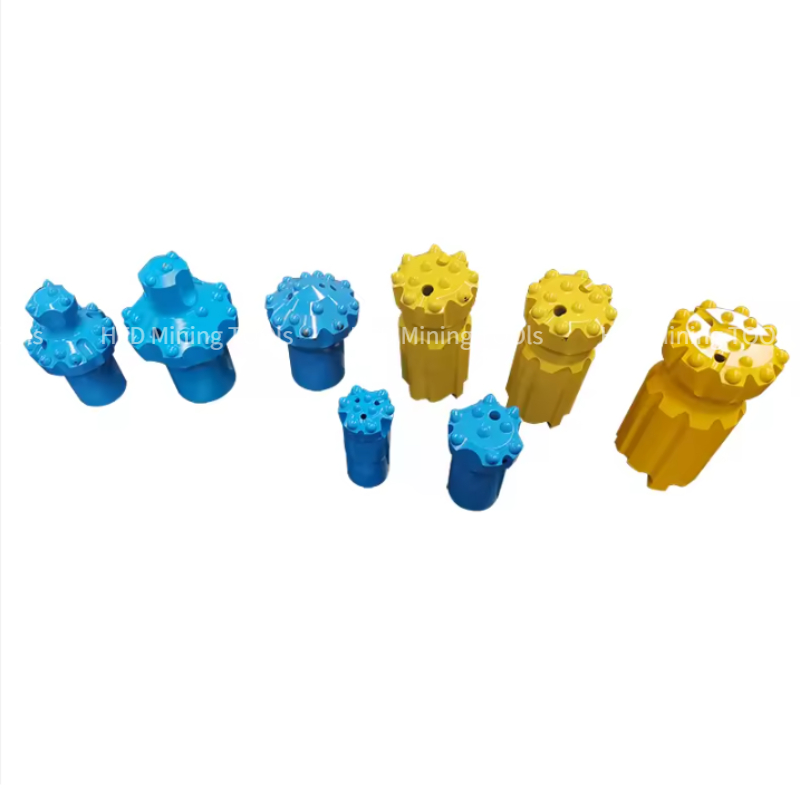

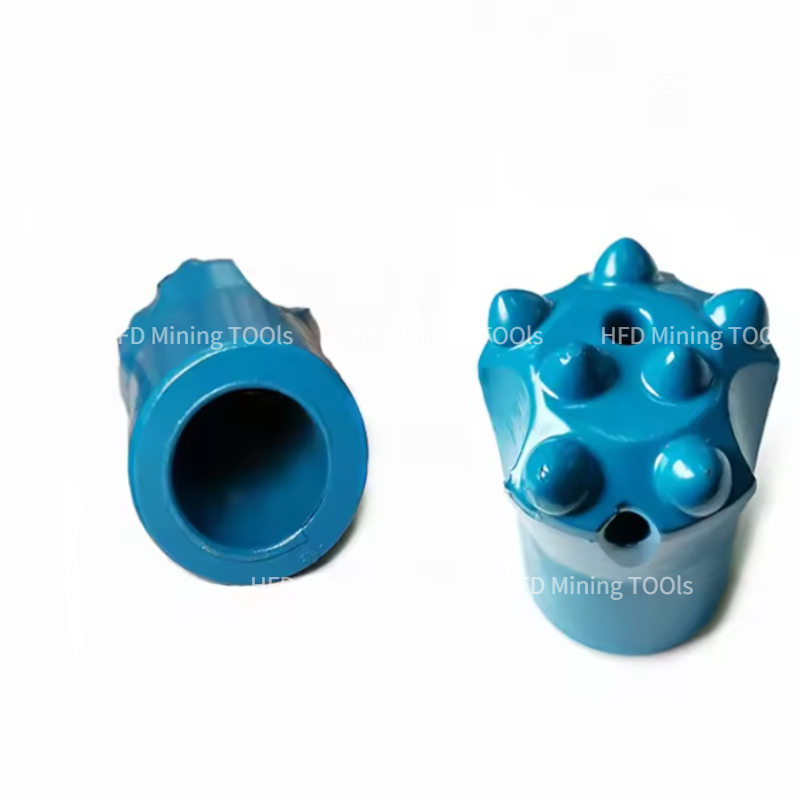

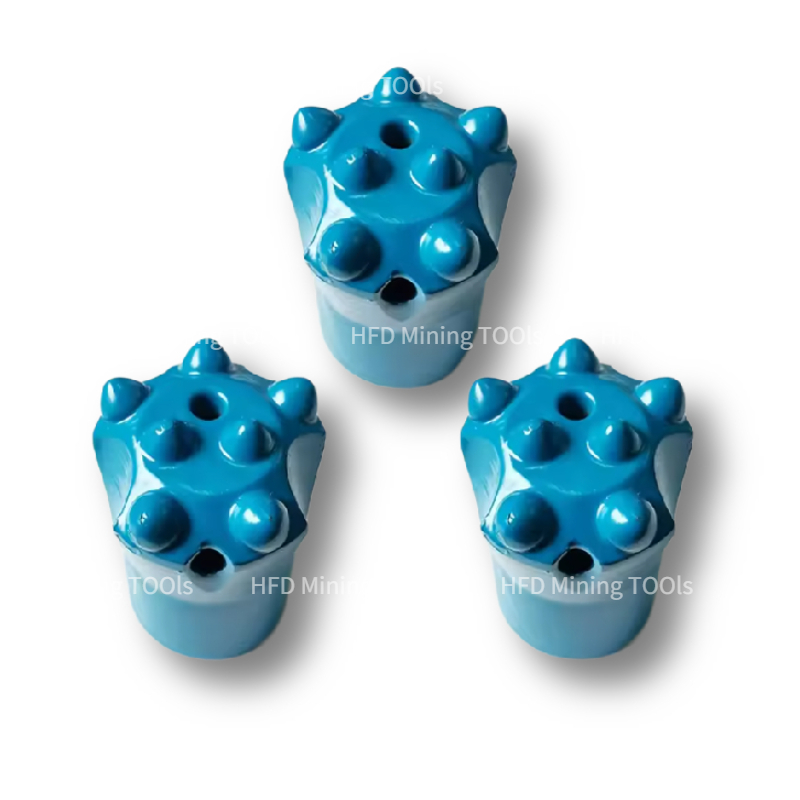

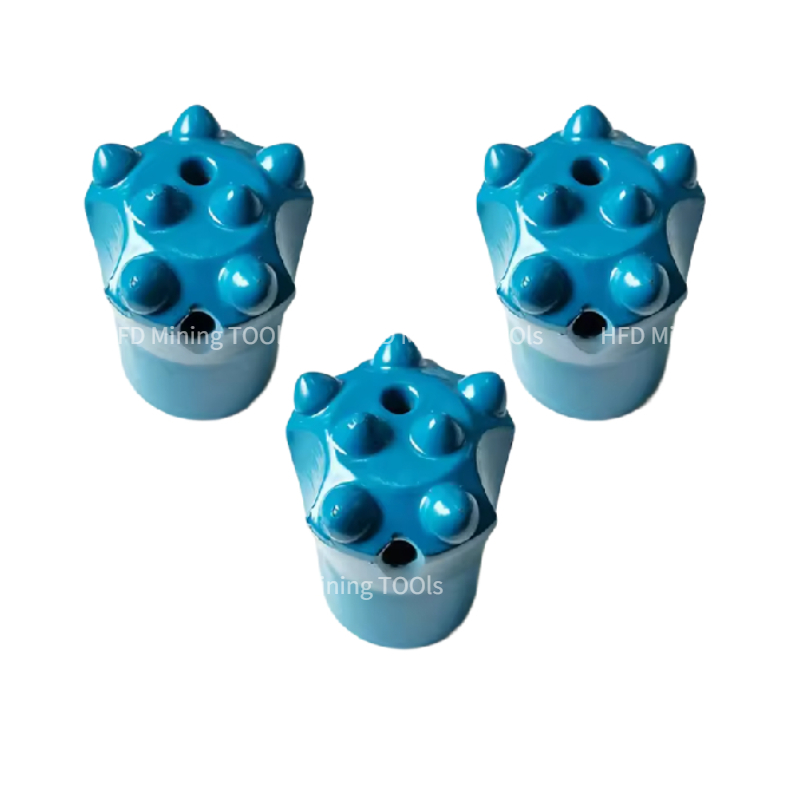

11 degree 32,mm 34mm 36mm 38mm Tapered Button Bit rock drill hammer mining tungsten carbide drill bits
Applicable Industries：Building Material Shops, Construction works , Energy & Mining
Type：Tapered bit
color:red/blue/yellow
Brand: HFD Mining Tools
With carbide buttons hot pressed on the bit skirts, tapered button bits have a good drilling performance and are excellent in longevity.
Request a quote for detailed information (MOQ, price, delivery)
Share:
11 degree 32,mm 34mm 36mm 38mm Tapered Button Bit rock drill hammer mining tungsten carbide drill bits :
The following sizes are available for you to choose from, or to provide you with customized services
Diameter | No x Buttons diameter mm | Button angle° | flushing holes | Weight (Kg) | Part No | |||
mm | inch | Gauge | Front | Side | Front | |||
button bit - For 22 mm 7" hex rod 7°taper angle | ||||||||
30 | 13∕16 | 3×7 | 1×6 | 35 | 1 | 1 | 0.2 | HD30-722PFF3 |
32 | 11∕4 | 3×7 | 1×6 | 35 | 1 | 1 | 0.3 | HD32-722PFF3 |
34 | 111⁄32 | 3×8 | 1×7 | 35 | 1 | 1 | 0.3 | HD34-722PFF3 |
36 | 113⁄32 | 5×6 | 2×6 | 35 | 1 | 1 | 0.4 | HD36-722PFF5 |
38 | 11∕2 | 5×7 | 2×6 | 35 | 1 | 1 | 0.4 | HD38-722PFF5 |
40 | 14∕7 | 5×7 | 2×7 | 35 | 1 | 1 | 0.4 | HD40-722PFF5 |
42 | 121∕32 | 5×8 | 2×7 | 35 | 1 | 1 | 0.4 | HD42-722PFF5 |
45 | 13∕4 | 6×9 | 3×8 | 35 | 1 | 3 | 0.5 | HD45-722PFF6 |
BUTTON BIT - For 22 mm 11" hex rod 7°taper angle | ||||||||
32 | 11∕4 | 5×6 | 2×7 | 35 | 1 | 1 | 0.3 | HD32-1122PFF5 |
34 | 111⁄32 | 5×6 | 2×7 | 35 | 1 | 1 | 0.3 | HD34-1122PFF5 |
36 | 113⁄32 | 5×6 | 2×7 | 35 | 1 | 1 | 0.4 | HD36-1122PFF5 |
38 | 11∕2 | 5×6 | 2×7 | 35 | 1 | 1 | 0.4 | HD38-1122PFF5 |
40 | 14∕7 | 5×6 | 2×7 | 35 | 1 | 1 | 0.4 | HD40-1122PFF5 |
42 | 121∕32 | 5×6 | 2×7 | 35 | 1 | 1 | 0.4 | HD42-1122PFF5 |
45 | 13∕4 | 5×6 | 2×7 | 35 | 1 | 3 | 0.5 | HD45-1122PFF5 |
BUTTON BIT - For 22 mm 12" hex rod 7°taper angle | ||||||||
32 | 11∕4 | 5×6 | 2×7 | 35 | 1 | 1 | 0.3 | HD32-1222PFF5 |
34 | 111⁄32 | 5×6 | 2×7 | 35 | 1 | 1 | 0.3 | HD34-1222PFF5 |
36 | 113⁄32 | 5×6 | 2×7 | 35 | 1 | 1 | 0.4 | HD36-1222PFF5 |
38 | 11∕2 | 5×6 | 2×7 | 35 | 1 | 1 | 0.4 | HD38-1222P |
 | Product Characteristic： |
| 1.Button bit taper angle: 7°,11°,12° | |
| 2.Length: 50/55/71/80 mm | |
| 3.Diameter: 30-45 mm | |
| 4.Button bit shape: spherical/parabolic | |
| 5.Socket inside diameter: 15/19/22/25(mm) | |
| 6.Material and process: high quality alloy steel bar and tungsten carbides, through heat treatment |
| Product Feature: |
| ▲We can design and manufacture according to customers' samples or drawings of the Bit Dia., No. of air / water holes, carbide button shape and the face shape. |
| ▲Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy. |
| ▲Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency. |
| ▲According to the tungsten carbide insert, Tapered Button Bits can be divided into the types of hemispherical, conical andparabolic button, etc. |
Why Choose HFD Down the hole bits ?
In the top hammer drilling tool manufacturing, we have world-class production technology, advanced production equipment, and experienced production technical staff. We have been working closely with our customers to conduct extensive on-site tests on various types of rocks and working conditions. Based on the feedback, we continue to improve and develop in various areas such as raw materials, heat treatment, design and manufacturing processes.
In terms of product consultation and rock tool services, we can select the most suitable rock drill tools and drilling construction schemes according to the user's construction conditions, rock type, mineral conditions and drilling equipment, so as to help users improve drilling efficiency, reduce drilling costs, and achieve better comprehensive benefits and higher labour productivity.
Our Down the hole bits have a good industry reputation in mining, tunnelling, quarrying, roads or construction due to their excellent wear resistance, roughening resistance and stability. Compared with many world-class brands of drilling tools, our rock drill tools are not inferior. In some field comparison tests, the use efficiency of our many products even exceeds that of world-class brands and has been highly recognized by customers.
Service & Support
Every purchase comes with round-the-clock after-sales service, support, and training to ensure customers get maximum productivity from their drilling operations. Having a knowledgeable and technical partner, on-site or online, can make the difference between going it alone and leveraging experience and expertise. Customers can rely on our service and support, which are provided by cost-effective and professional DTH drilling tool manufacturers. We know about downhole drilling!
